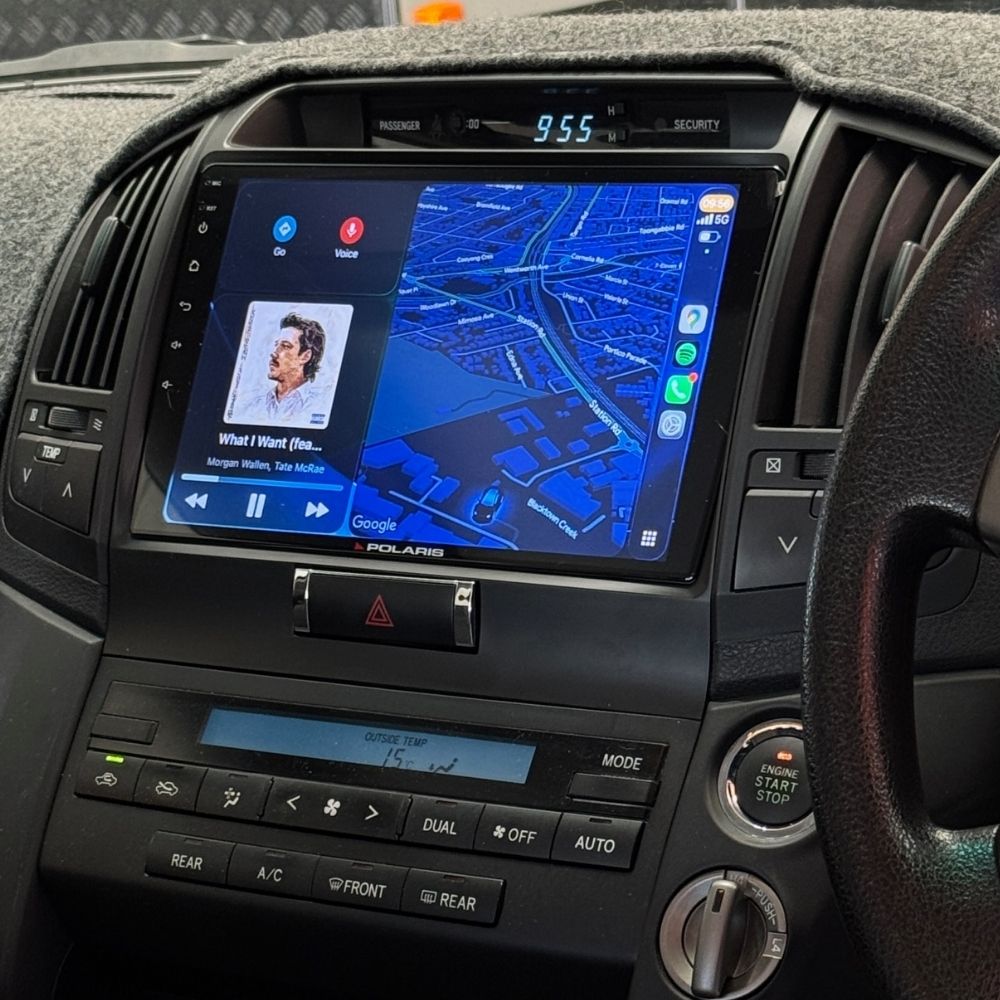

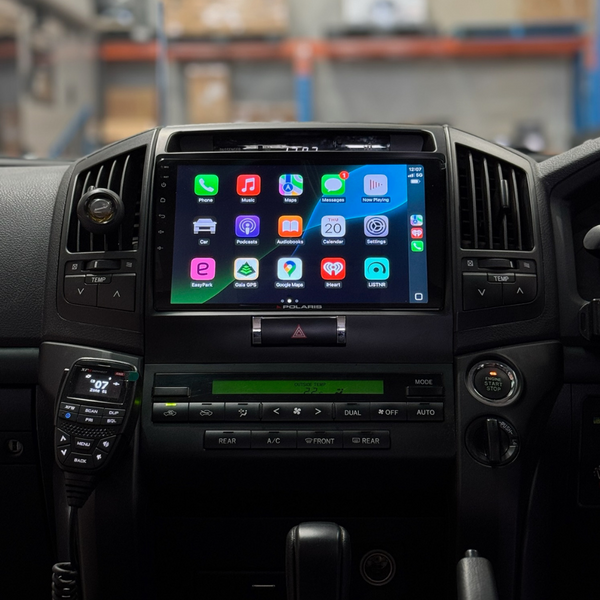

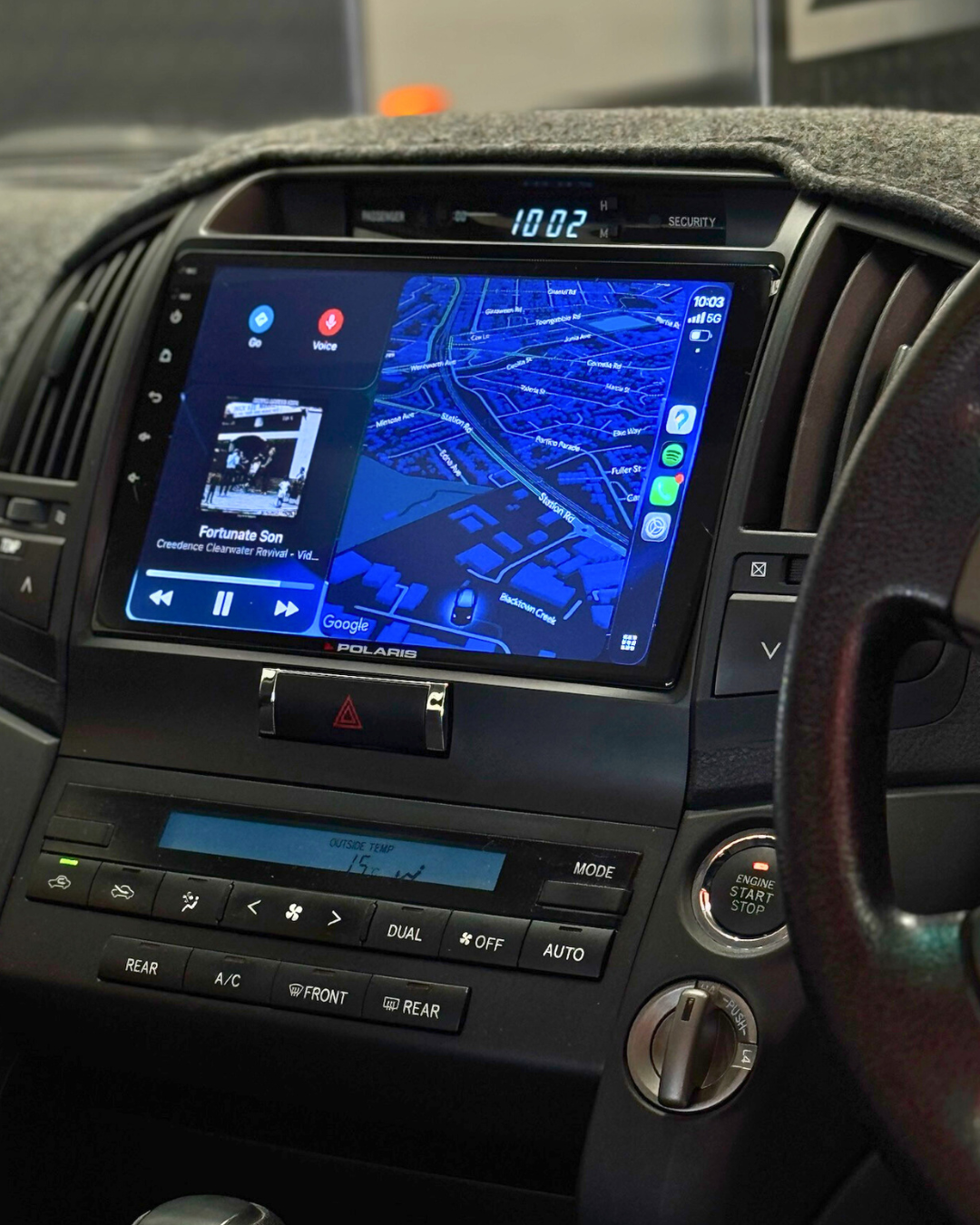

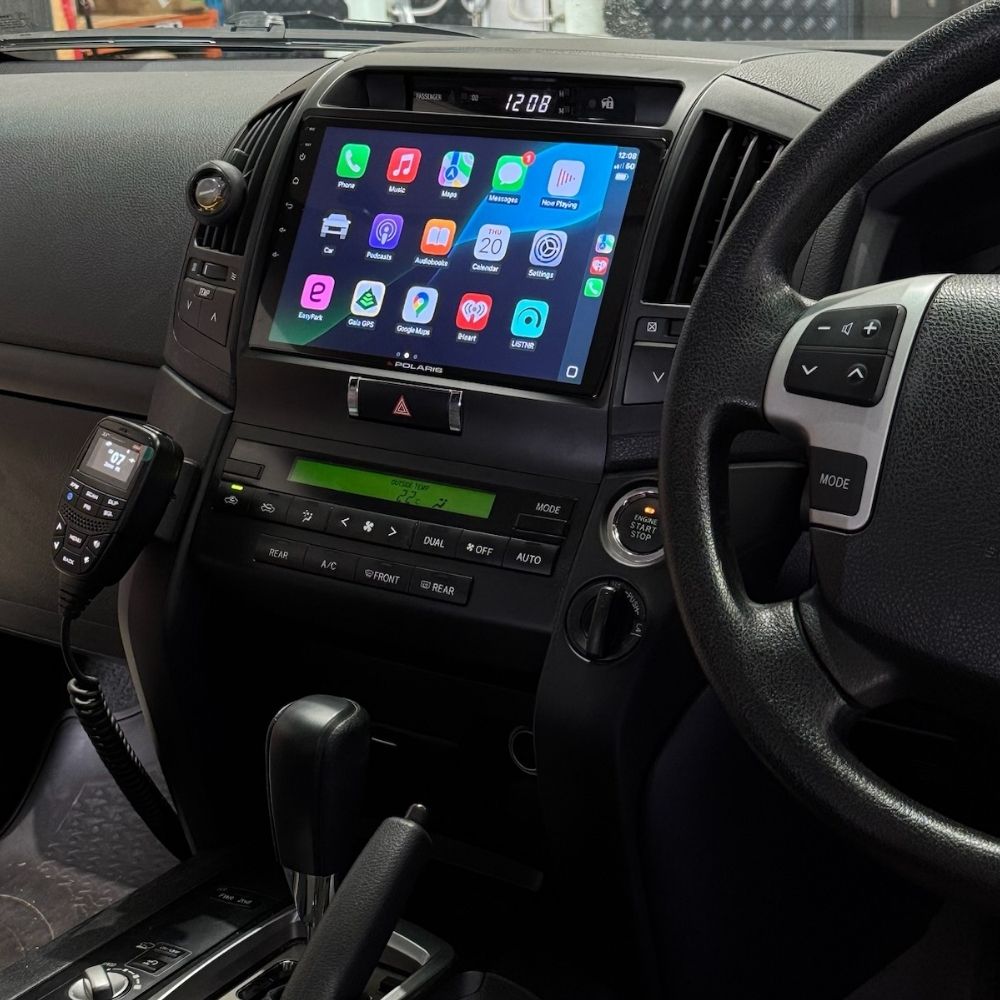

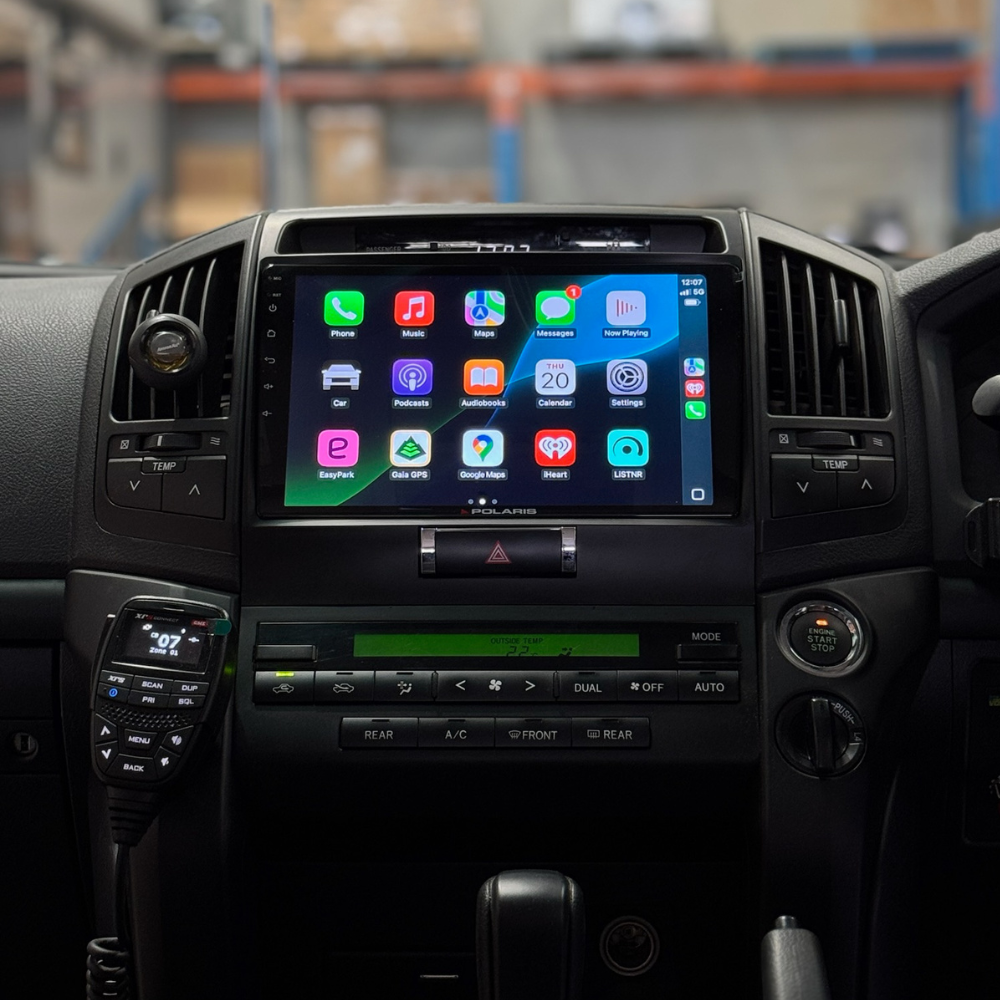

• 2008-2015 Toyota Landcruiser 200 series GX/GXL/VX/Altitude
• Gloss & Matte Black surrounds available

• Wireless & wired Carplay
• Wireless & wired Android Auto
• Retains steering wheel controls
• Preloaded with Newtracs & Torque app
• Reverse Camera included
• Cortex-A53 Processor
• Analogue AM/FM Radio
• Android OS
• Bluetooth
• 4 x AHD camera inputs
• WiFi
• 4G SIM compatible
• High Definition Screen 1280 x 800 QLED with MiraVision
• Over-the-air software updates
• Capacitive Touch screen
• RAM: 6GB
• Flash: 128GB
• High Quality MOSFET Amplifier
• 4 x 50 W/4 Ω Max.
• Modern, User Friendly Interface

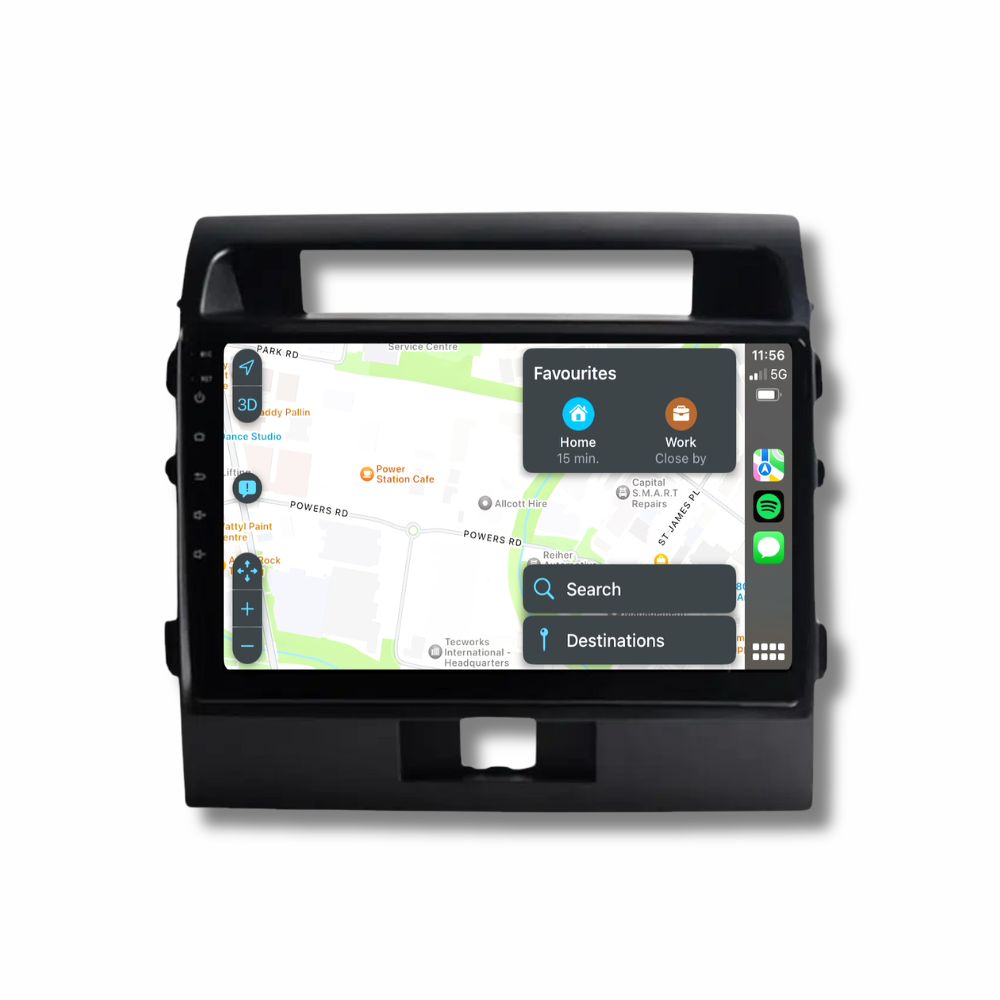

• Head Unit already mounted in it’s own vehicle specific fascia
• 1 x Reverse Camera of choice
• Wiring Harness (may have multiple to suit a wide variety of variants)
• GPS External Antenna
• Bluetooth External Microphone
• Fly lead with 2 x USB A inputs
• Fly Lead with 1 x USB A Input
• Fly lead with 4 AHD Camera Inputs
• Fly lead with CVBS Front Cam input & CAN power
• Fly lead with CVBS Rear Camera input, bluetooth & Wifi Antenna
• Fly lead with SIM Card input
• 2 x SIM External Antenna’s

System Specifications

• CPU: Cortex-A53 4CPU + 4GPU, 2.0GHz
• RAM + ROM: 6GB + 128GB
• Operating System: Android
• PCB Layer: 8 layers with 2 ranks
• Video Formats: RMVB, MKV, MOV, WMV, AVI, MPG, TS (1080P H.264)
• Audio Formats: MP3, WMA, WAV, OGG, FLAC, APE
• Steering Wheel Control: Supports (if applicable)
• Power Off: Shut off OS, <10mA
• Working Voltage: DC12V
• Operating Voltage Range: 10.8V ~ 16V
• Max Current: 10A
• Form Factor: In-Dash, No chassis
• OSD Languages: English, Russian, Arabic, German, Spanish, French, Thai, Italian, Chinese + 63+ languages
• Illumination Control: Yes
• Anti-shock: Mechanical & Electronic

Display

• Touch Screen: Multi-touch capacitive
• Display Mode: 16:9
• Screen Size: 10.1 inch
• Resolution: 1280 × 800
• Display Off Function: Yes

CarPlay & Android Auto

• Wireless Support: Yes
• Phone Support: CarPlay (iPhone), Android Auto (Android phones)
• Auto Connect: Automatic after first pairing

Wi-Fi

• Dual Band: 2.4GHz & 5GHz
• Security: WPA/WPA2, AES-CCMP, WPS2.0, WAPI
• Frequencies:
• 2412–2472 MHz (802.11b/g/n HT20)
• 2422–2462 MHz (802.11n HT40)

GPS

• Map Support: Multiple mapping apps
• Frequency: GPS L1: 1559–1610 MHz

Radio

• Radio IC: SI47901
• Tuner: FM/AM with RDS
• Frequency Range: FM 87.5–108 MHz, AM 522–1620 KHz

Amplifier (MOSFET, Class AB – STPA008)

• Output Power:
• 4 × 50 W into 4 Ω (max)
• 4 × 28 W/4 Ω @ 14.4 V, 1 kHz, 10% THD
• 4 × 72 W into 2 Ω (max)
• RCA Pre-outs: 3 pairs, 4V (Front/Rear/Subwoofer)
• EQ Modes: Flat, Powerful, Vocal, Natural, Insane, Unlimited presets
• Customisable Graphic EQ: 13-Band
• D/A Converter: 24-bit
• Crossover Network: LPF/HPF
• Time Alignment: Yes
• Loudness: Yes
• Subwoofer Control: Yes
• LPF & HPF Adjust: Yes
• Hi-Fi Class Distortion: THD as low as 0.01% @ 4W
  Channel Separation (Crosstalk): 75 dB @ 1 kHz, 60 dB @ 10 kHz
• Noise Floor: Output noise (A-weighted) as low as 40 μV
• Frequency Response: Extended up to ~100–300 kHz
• Voltage Gain: 26 dB fixed (±1 dB)

Bluetooth

• Version: BT 5.0 dual connection, A2DP (stereo music)
• Microphones: Built-in & external
• Call Support: Received, Dialled, Missed Calls
• Phonebook Download: Yes
• Frequency Range: 2402–2480 MHz

Rear Camera Input

• AHD: 4 x AHD Inputs (RCA)
• CVBS: 2 x CVBS Inputs (RCA)

SD/USB

• Playback Mode: Auto-play multimedia on connect
• SD Map Card Slot: Rear of unit
• USB Ports: 3 (rear)

Interface

• Video Output: 2 channels (CVBS out)
• Audio Input: 2 channels (Aux In)

General

• Colour: Fascia available in Matte or gloss black
• Operating Temperature: -20℃ ~ +70℃
• Storage Temperature: -30℃ ~ +80℃
• Protections: Short-circuit, over-voltage/load dump (up to 50 V), thermal limit (smooth mute >150℃, shutdown >170℃), DC offset detection, clipping detection

Q: What vehicles will this head unit work with?

A: The Polaris 200Maxx10.1 is designed specifically for the 2008-2015 Toyota Landcruiser 200 series GX/GXL/VX/Altitude. We also have Gloss & Matte Black surrounds available.

Q: Does this unit support wireless CarPlay and Android Auto?

A: Yes. The head unit supports both wireless and wired CarPlay and Android Auto for seamless smartphone connectivity.

Q: Is installation complicated?

A: This depends on your pre-existing knowledge. Some people find it straightforward while others may find it more challenging. As long as you carefully read through the installation manual you should be fine. Installing the camera is usually the most time-consuming part of the process.

Q: Does it come with a reverse camera?

A: Yes. A reverse camera is included in the kit.

Q: Can I use multiple cameras with this unit?

A: Yes. The unit supports up to 4 AHD cameras and 2 CVBS inputs.

Q: Will my steering wheel controls still work?

A: Yes. The Polaris 200Maxx10.1 retains your factory steering wheel control functionality.

Q: What apps come preloaded?

A: The unit includes Newtracs and Torque app, plus access to the Google Play Store for additional apps.

Q: Does the unit receive software updates?

A: Yes. It supports over-the-air updates to keep your system up to date.

Q: Is the screen high quality?

A: Yes. It has a 10 inch QLED HD touchscreen with 1280 x 800 resolution and MiraVision for crisp visuals.
